Nodes

The orka node group of commands in the Orka CLI. These commands are used for node monitoring and management.

🚧

Quick navigation

Listing and info: List nodes | Get node status

Sandbox: Enable sandbox | Disable sandbox

Node dedication: Manage node dedication

Node affinity: Tag nodes (node affinity) | Untag nodes (node affinity)

🚧

Quick command summary

orka node list
orka node status -n <NODE>
orka node sandbox -n <NODE>
orka node unsandbox -n <NODE>
orka node group -g <GROUP> -n <NODE>
orka node tag -n <NODE> --tag <TAG>
orka node untag -n <NODE> --tag <TAG>

List nodes

Command

List Orka nodes with state and resource availability. Without any options specified, the command returns the worker nodes where Orka deployments are scheduled.

orka node list

OR

orka node list -f all

Output

2078

Options

You can pass the following options with orka node list in direct mode:

OptionDescription
-f(Administrative-only) Set to all to list all nodes.
--jsonBypasses the interactive prompt, executes the command with the specified parameters, and returns the output of the command in JSON.
--rawReturns the output of the command in raw, greppable format.

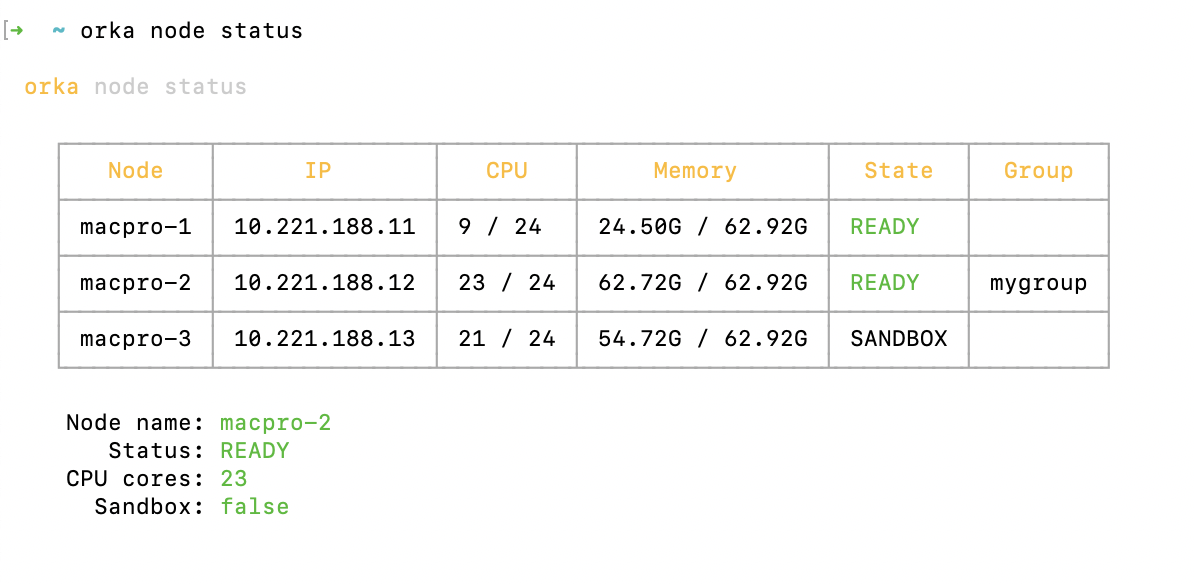

Get node status

Command

Show status information, including type, for a selected node. The command also lists all available nodes in interactive mode.

orka node status

OR

orka node status -n <NODE> -y

Output

2078

Options

You can pass the following options with orka node status in direct mode:

OptionDescriptionSample value
-nThe name of the node.macpro-1

Enable sandbox

Command

Enable sandbox mode for the node. This prevents Orka from managing deployments on the node and reserves it for Kubernetes-only deployments.

This command requires additional administrative authentication with an Orka license key.

πŸ“˜

Sandbox is not required to use kubectl

kubectl works on all Orka clusters. Sandboxing is an easy way to cordon off nodes and prevent further deployment management with the basic Orka CLI.

πŸ“˜

Known limitation

This command is applicable only to Intel-based nodes.

For more information, see Apple Silicon-Based Support.

orka node sandbox

OR

orka node sandbox -n <NODE> -y

Output

2078

Options

You can pass the following options with orka node sandbox in direct mode:

OptionDescriptionSample value
-nThe name of the node.macpro-1
-lAn Orka license key used for authentication against your Orka environment. Set this option, if you want to use a license key different from the one cached locally.orka-license-key

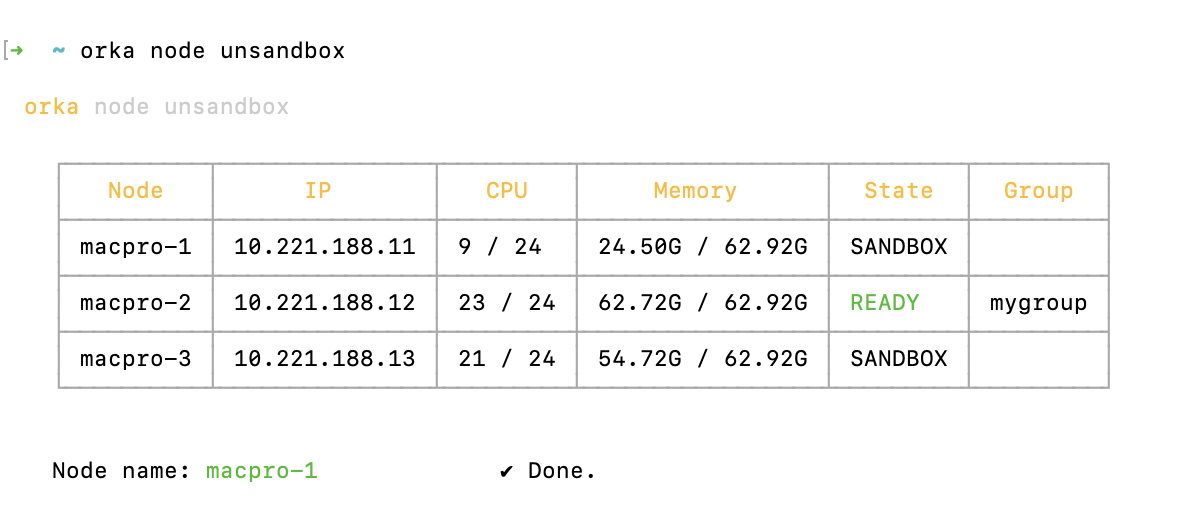

Disable sandbox

Command

Disable sandbox mode for the specified node and expose it for deployment management with the Orka CLI.

This command requires additional administrative authentication with an Orka license key.

πŸ“˜

Known limitation

This command is applicable only to Intel-based nodes.

For more information, see Apple Silicon-Based Support.

orka node unsandbox

OR

orka node unsandbox -n <NODE> -y

Output

2078

Options

You can pass the following options with orka node unsandbox in direct mode:

OptionDescriptionSample value
-nThe name of the node.macpro-1
-lAn Orka license key used for authentication against your Orka environment. Set this option, if you want to use a license key different from the one cached locally.orka-license-key

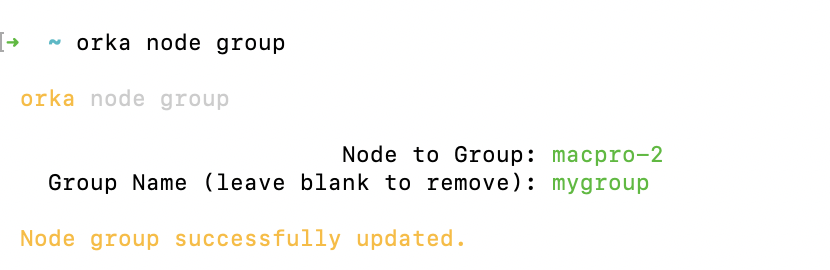

Manage node dedication

Command

Dedicate the specified node to the specified user group or remove an existing node dedication.

This command requires additional administrative authentication with an Orka license key.

orka node group

OR

orka node group -g <GROUP> -n <NODE> -y

OR (to remove a node dedication)

orka node group -g -n <NODE> -y

Output

2078

Options

You can pass the following options with orka node group in direct mode:

OptionDescriptionDescription
-nThe node to which you want to apply or remove a user group label.macpro-2
-gThe user group label that you want to apply. The label may or may not already exist.

To remove a group label, leave blank.
mygroup
-lAn Orka license key used for authentication against your Orka environment. Set this option, if you want to use a license key different from the one cached locally.orka-license-key

Tag nodes (node affinity)

Command

Apply the specified tag to the specified node. Orka will automatically target this node or group of nodes when deploying VMs labeled with the same tag (in the VM config or during deployment). Based on the --tag-required setting of the VM, Orka might or might not try to deploy on additional nodes if the deployment on the tagged node(s) fails.

You can apply multiple tags to a single node. Run orka node tag for each tag separately.

This command requires additional administrative authentication with an Orka license key.

πŸ“˜

Using both groups and tags in your cluster?

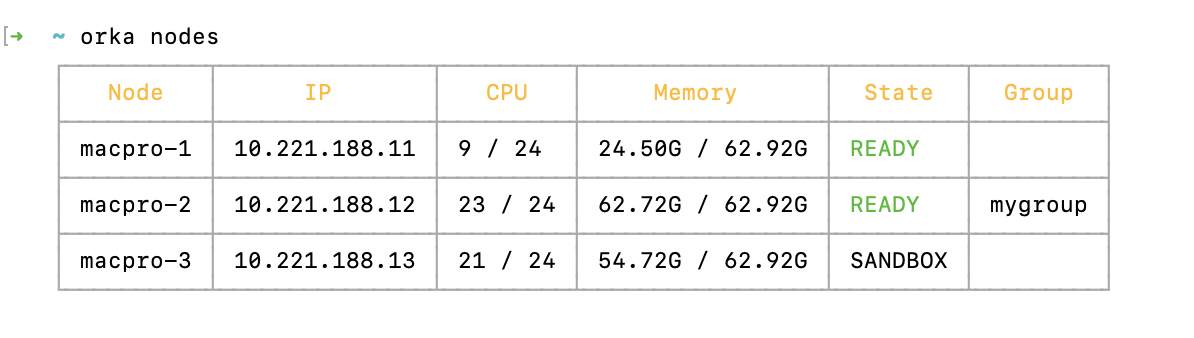

If you are a member of a user group, you can target only tagged nodes that are also dedicated to your user group. To check the current node dedication and node affinity settings of a node, run orka nodes.

orka node tag

OR

orka node tag -n <NODE> --tag <TAG> -y

Output

2078

Options

You can pass the following options with orka node tag in direct mode:

OptionDescriptionSample value
-nThe name of the node to which you want to apply the specified tag.mini-1
--tagThe tag to apply to the node.

The string must consist of lowercase and/or uppercase Latin alphanumeric characters, dashes (-), underscores (_), or periods (.). The string must begin and end with an alphanumeric character. The string must not exceed 63 characters.
myPool
-lAn Orka license key used for authentication against your Orka environment. Set this option, if you want to use a license key different from the one cached locally.orka-license-key

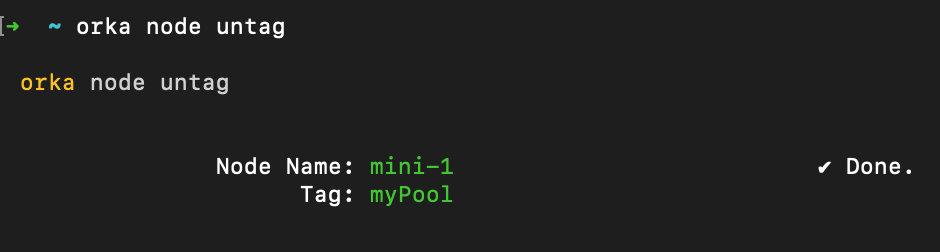

Untag nodes (node affinity)

Command

Remove the specified tag from the specified node. You will no longer be able to target this node for deployment with the specified tag.

You cannot remove multiple tags at once. Run orka node untag for each tag you want to remove.

This command requires additional administrative authentication with an Orka license key.

πŸ“˜

Are you cleaning up an existing tag from the cluster?

After you remove an existing tag from all the nodes it was applied to, you will no longer be able to deploy VMs with that tag and the --tag-required yes setting. You will need to override the node affinity settings on deployment or recreate the VM configs.

orka node untag

OR

orka node untag -n <NODE> --tag <TAG> -y

Output

2078

Options

You can pass the following options with orka node untag in direct mode:

OptionDescriptionDescription
-nThe name of the node for which you want to remove the specified tag.mini-1
--tagThe tag to remove from the node.myPool
-lAn Orka license key used for authentication against your Orka environment. Set this option, if you want to use a license key different from the one cached locally.orka-license-key
